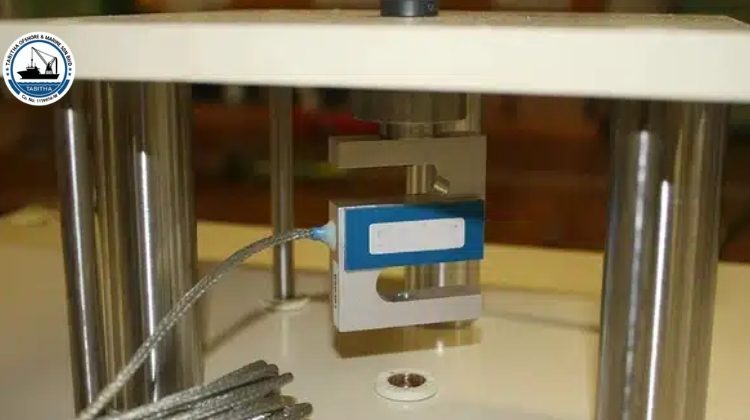

Loadcell Calibration: Ensuring Accurate and Reliable Measurements in Industrial Applications
Precision is a major concern in the core of contemporary production, logistics, and process management. The most important elements to the realization of this accuracy are load cells, which are extremely advanced weight detectors that turn force or weight into an electrical signal. They are the dumb mules in use where critical structural loads are to be monitored, particularly in applications such as industrial scales and tank weighing.
Since they are essential in making decisions and controlling quality, it is not a matter of negotiation to ensure that the weight sensors are precise. That is where the question of load measurement comes, and a correct calibration is a matter of the utmost importance of the integrity of all the operations. In its absence, the whole industrial weighing system is exposed to the risk of generating unreliable data.
What is Loadcell Calibration?
The loadcell calibration process is an act that relates the electrical output of the loadcell (usually in millivolts/volt) to the actual physical force/weight being exerted. In essence, it trains the loadcell to speak the right language of measure.
One should know the distinction between verification and calibration. Testing only proves that a device is functioning within acceptable ranges. Calibration, on the other hand, entails the comparison of the loadcell output with a known, highly accurate standard and then adjusting the error to a minimum. All load measurement devices require following a rigorous calibration process.
The industry common loadcells are strain gauge (most widely used), hydraulic, and pneumatic, all of which necessitate a particular treatment when calibrating their sensors.
Why Loadcell Calibration is Important
Calibration is indeed far more than technical compliance worth: it will directly influence your bottom line and safety.
- Guarantees Accurate Weighing: Consistency and accuracy are the keystones to quality control, inventory control, and accurate batching. Calibration is a guarantee of your accuracy of your measurement.
- Eliminates Expensive Mistakes: In pharmaceuticals or petrochemical-type industries, several grams of error could result in spoiled batches, money wastage, as well as product recall. The correct calibration of industrial scales would be essential in avoiding such accidents.
- Adherence to Industry Standards: Calibration is required to guarantee quality assurance and compliance with the industry standards through regulatory bodies such as ISO, NIST, and OIML. An up to date calibration certificate will give conclusive evidence of adherence.
Types of Loadcell Calibration
The calibration method chosen often depends on the application:
| Type of Calibration | Description | Application |
| Static Calibration | Uses known, certified test weights applied in steps. The most common form of load cell testing. | Ideal for static applications like industrial scales and tank weighing. |
| Dynamic Calibration | Used for real-time, rapidly changing, or operational loads. More complex and simulates actual working conditions. | Essential for processes involving movement, such as in-motion weighing or crash testing. |
| On-site (Field) Calibration | Performed where the loadcell is installed. Necessary when the device cannot be easily removed. | Field calibration is crucial for large industrial weighing systems. |
| Laboratory Calibration | Performed in a controlled environment with highly sensitive master instruments. | Used for high-precision sensors or for initial calibration. |
These different calibration methods ensure that precision measurement instruments are always reliable.
Step-by-Step Loadcell Calibration Procedure
Although each loadcell type has its own steps to follow, a typical calibration process includes:
- Preparation: Clean a proper inspection. The loadcell should be tidy, and it should not be filled with debris.
- Connection: Interface the loadcell with certified calibration equipment and reference meter.
- Application of Known Weights: Load test weights (the known standard) in the entire measurement range in small steps. Record the electrical output of loadcell at every step.
- Parameters Adjustment: Shows the obtained data to optimize the calibration parameters of the system to achieve the output signal corresponding to the applied weight (the procedure of loadcell adjustment).
- Checking Accuracy: Once again, apply the weights to ensure that the system is now giving the correct readings over the whole range to reduce the possibility of loadcell error.
Factors Affecting Loadcell Accuracy
External factors can also cause the sensor accuracy of the best-calibrated loadcell:
- Environmental Conditions: A Change in temperature and humidity may lead to drift in measurements. Loadcells must be made in the working environment.
- Mechanical Wear or Overload: Mechanical loading or non-negligent use may cause irreversible damage and may require more than normal load cell maintenance.
- Electrical Noise and Wiring: Problems such as bad grounding, electrical noise can cause errors, and good troubleshooting needs to be done.
Best Practices for Loadcell Calibration
In case you need to guarantee the durability and stability of your equipment:
- Frequent Calibration Periods: Have a strict calibration period. The period to be followed should be according to the recommendation of the manufacturer, the intensity of usage, and the past data of traceability of the measurement. This is important in preventive maintenance.
- Use Certified Weights: It is always essential to use test weights and standards that can be traced to the national measurement bodies.
- Proper Records: Prepare accurate calibration certificates and records, and record the as-found and as-left condition. This is necessary to the standards in industries.
- Personnel Training: The personnel who will be handling the equipment should be well-trained on proper handling and calibration procedures.
Common Challenges in Loadcell Calibration
Industrial measurement Technicians are prone to special difficulties in measurement:
- Operational Setups: Field calibration may not be easy when the loadcell is incorporated deep in a complex machine or a complex structure.
- Huge loads/Unsafe Conditions: Calibration of large-capacity systems is a special equipment and safe operation, particularly in risky areas.
- Traceability and Compliance: It may be a major logistical challenge to maintain the traceability of measurement at the site through to the national standards.
FAQs: Loadcell Calibration
1. What do you mean by loadcell calibration and why do we have to do it?
Ans: The calibration of a loadcell is a procedure of balancing a loadcell to make it accurate and reliable in measuring the weight of an object. Periodic calibration helps to avoid errors in industrial weighing, meet such standards as ISO and NIST, and be operationally efficient.
2. What are the frequency of loadcells calibration?
Ans: Calibration frequency varies depending on usage, environment, and industry standards. In the case of industrial use, loadcells should be calibrated at least once per year, or more often in the case of those loadcells which are subjected to heavy loading or in general with extreme conditions.
3. What are the usual calibration procedures of loadcells?
Ans: Calibration of loadcells may be performed in case of a static calibration involving known weights, dynamic calibration in the current conditions of operation, and on-site calibration of installed loadcells. Both methods will give correct measurements in various conditions.
4. Is it possible to calibrate a loadcell?
Ans: Basic checks can be done, but professional calibration will be required to achieve accuracy and compliance. traceable weights, special instruments, and documentation in the certified calibration services are used to ensure compliance with the industry standards.
5. How can the accuracy of loadcells be influenced?
Ans: The accuracy of loadcells may be affected by environmental conditions (temperature, humidity, vibration), mechanical wear, overload, electrical problems, including wiring problems. These problems can be eliminated by regularly calibrating and maintaining.
Conclusion
Loadcell calibration is not only a process, but it is a foundation to efficiency, quality assurance and safety in any business that depends on correct measurement of weight and forces. Risk reduction, the elimination of expensive mistakes, and the ability to achieve high levels of reliability with its industrial weighing systems are all achievable by companies by implementing routine and accurate calibration and thorough load cell maintenance. To make sure that you will win, invest in your precision.
